    Various Installing


    The screens are perfect for plaza,
    shopping mall, stadiums, billboards,
    casinos and a host of outdoor all kinds

    of applications.



  •





    We are not only producer, but also offer the

    whole solution for your specific LED display

    project, include: control system, software,

    installation drawing and tech support, etc.

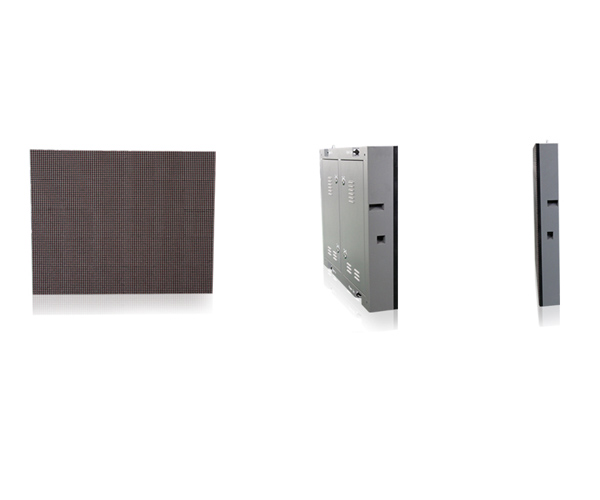

    Outdoor Fixed installation cabinet:

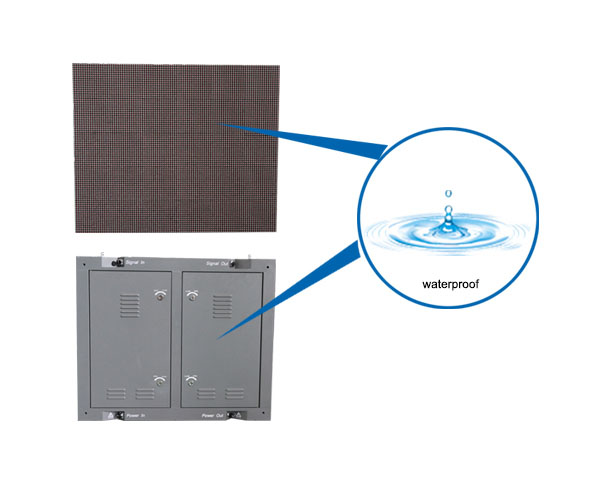

    Waterproof  Protection Standard:  IP65/IP54.



  •

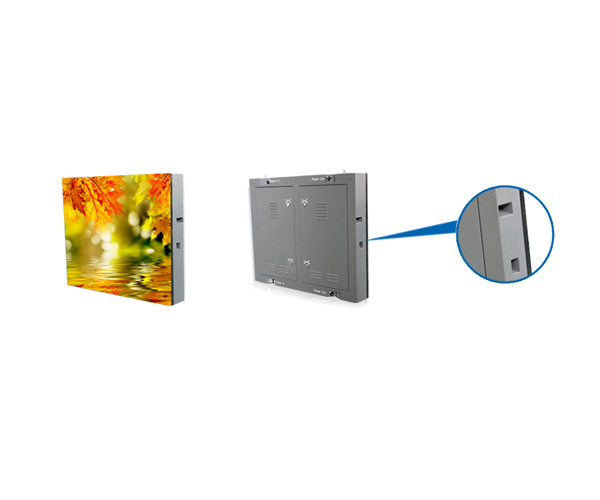

    Multi-function side holes design,easy for

    handle it.Or can upgrade the design add

    side and top bottom fast locks for

    Standard Iron Cabinet.



  •







    Outdoor LED Display Weight: 50KG/m2
    Also can use Aluminum slim led cabinet

    Materials, weight can be less 40%.

    Size can be Customized.



  •

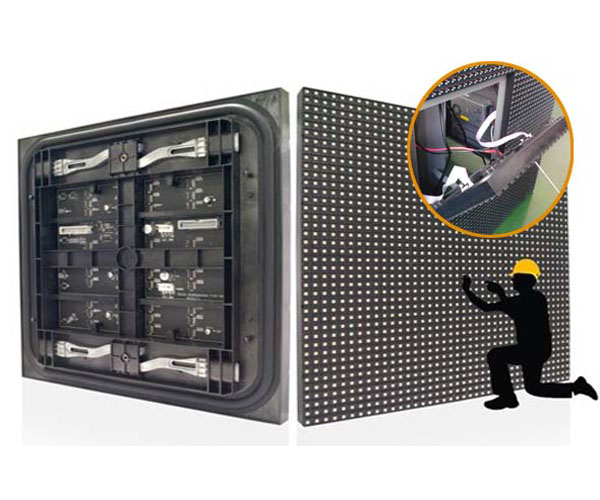

    Front Maintenance Access Solution


    Easy for Future Maintenance
    For Outdoor LED Display Screen
    we also offer front maintenance solution.
    You can take modules out from the front

    of led cabinetwith one screwdriver.









Outdoor Fixed LED Display Parameters
Pitch 4.81mm 5mm 6mm 6.25mm 8mm 10mm 10mm 12.8mm 16mm
Density(dot/2) 27777 40000 27777 25600 62500 10000 10000 6104 3906
LED Encapsulation SMD3in1 SMD3in1 SMD3in1 SMD3in1 SMD3in1 SMD3in1 DIP346 SMD3in1 SMD3in1/DIP346
Module Size(mm)    250*2590 160*160 192*192 250*2590 256*128 320/160*160 160*160 192*192 256*256
Module Resolution(pixel) 52*52 32*32 32*32 40*40 32*16 16*16 16*16 16*16 16*16
Brightness(cd/©O) 5500 5500 5500 5000 5500 5000 7500 6000 8000
Gray Scan 14-16bit 14-16bit 14-16bit 14-16bit 14-16bit 14-16bit 14-16bit 14-16bit 14-16bit
Refreshrate(Hz) 600-2400 600-2400 600-2400 600-2400 600-2400 600-2400 600-2400 600-2400 600-2400
Best Viewing Distance(m) 4.8-150 5-150 6-150 6-150 8-150 10-150 10-150 12-150 16-150
Drive Mode Constant Current Drive
Viewing Angle SMD: Horizontal:140¡ã Vertical:140¡ã      DIP: Horizontal:120¡ã Vertical:50¡ã
Protection Level IP65
Working Temperature -20¡ãC-50¡ãC
Working Humidity 10%-90%
Working Voltage AC 110V~220V¡À10%
Refresh Frame Frequency(Hz) 60
Lifespan 100000hours
Malfunction Dot Rate £¼0.0002
Control system LINSN/ZDEC/DBSTAR/NOVASTAR/COLORLIGHT

 *Above details only for reference, all rights reserved and belong to TOPLED.
